Arc Welding Inverter (MOSFET)

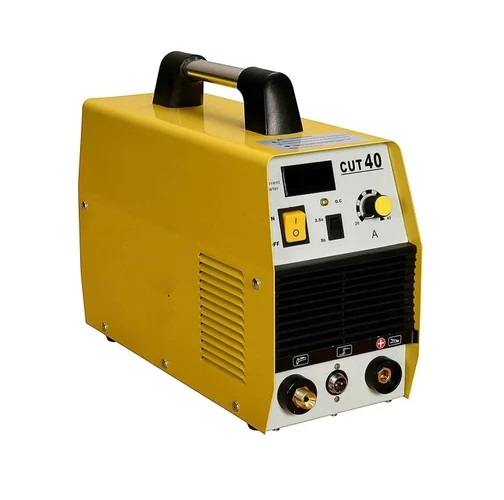

CUT40 1P




CUT40 1P
Input Voltage (V)
AC230V±15%
Frequency (HZ)
50/60
Rated Input Current
30
NO-Load Voltage (V)
253
Output Current Range(A)
15-40
Rated Output Voltage (V)
96
Duty Cycle (%)
60
Input power capacity (KVA) 6.6
Arc Ignition Contact
Efficiency (%) 80
Power Fector
0.73
Insulation Grade F
Housing Protection Grade IP21
Air Pressure (KG) 4-5
Cutting Thickness (mm) 0.3-12
Net Weight (Kg)
9

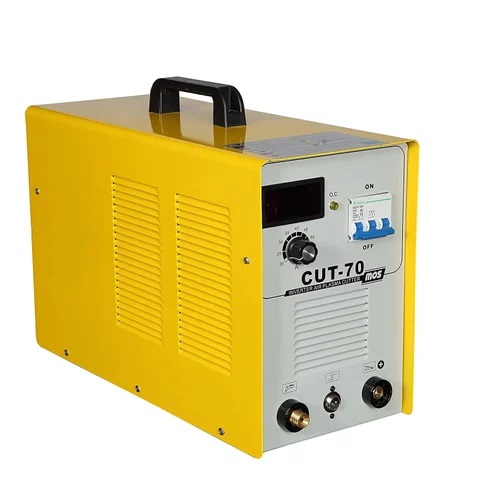

CUT70 3P




CUT70 3P
Input Voltage (V)
AC230V±15%
Frequency (HZ)
50/60
Rated Input Current
20
NO-Load Voltage (V)
240
Output Current Range(A)
20-70
Rated Output Voltage (V)
104
Duty Cycle (%)
60
Input power capacity (KVA) 7.6
Arc Ignition Contact/transfer
Efficiency (%) 80
Power Fector
0.93
Insulation Grade F
Housing Protection Grade IP21
Air Pressure (KG) 4-5
Cutting Thickness (mm) 1-20
Net Weight (Kg)
19

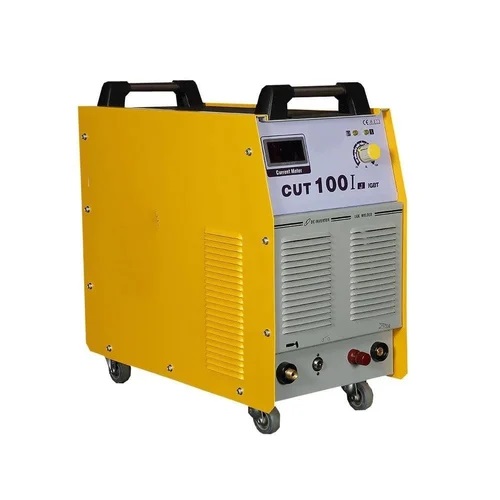

CUT100 3P




CUT100 3P
Input Voltage (V)
AC230V±15%
Frequency (HZ)
50/60
Rated Input Current
23
NO-Load Voltage (V)
260
Output Current Range(A)
20-100
Rated Output Voltage (V)
120
Duty Cycle (%)
60
Input power capacity (KVA) 12.8
Arc Ignition /transfer
Efficiency (%) 85
Power Fector
0.93
Insulation Grade F
Housing Protection Grade IP21
Air Pressure (KG) 4-5
Cutting Thickness (mm) 1-30
Net Weight (Kg)
35

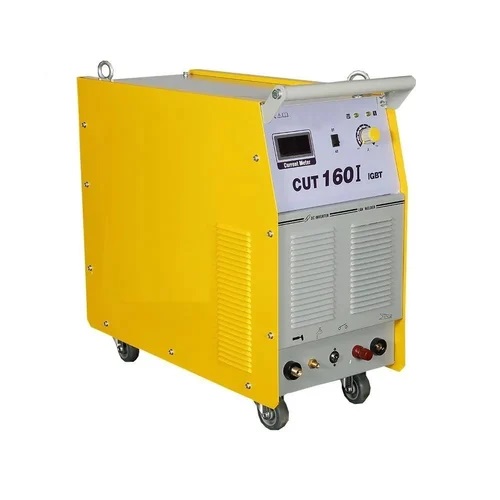

CUT160 3P




CUT160 3P
Input Voltage (V)
AC230V±15%
Frequency (HZ)
50/60
Rated Input Current
44
NO-Load Voltage (V)
320
Output Current Range(A)
20-160
Rated Output Voltage (V)
144
Duty Cycle (%)
60
Input power capacity (KVA) 24
Arc Ignition /transfer
Efficiency (%) 85
Power Fector
0.93
Insulation Grade F
Housing Protection Grade IP21
Air Pressure (KG) 4-7
Cutting Thickness (mm) 1-55
Net Weight (Kg)
55
