Arc Welding Inverter (MOSFET)

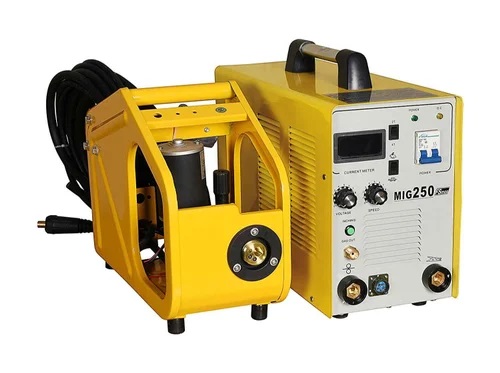

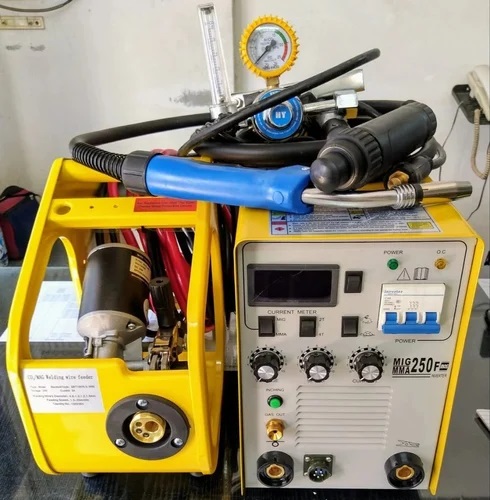

MIG-250 1P




MIG-250 1P
Input Voltage (V)
AC230V±15%
Frequency (HZ)
50/60
Rated Input Capacity
8.5
Output Current Range(A)
50-250
Output Voltage Adjusment (V) 26.5
Wire Feeding Speed (mm/min) 2.5-18
Duty Cycle (%)
60
Type Of wire Feeder in built / Split
Efficiency (%)
80
Power Factor
0.73
Insulation Grade
F
Net Weight (Kg)
24


MIG-250 3P




MIG-250 3P
Input Voltage (V)
AC415V±15%
Frequency (HZ)
50/60
Rated Input Capacity
8.5
Output Current Range(A)
50-250
Output Voltage Adjusment (V) 26.5
Wire Feeding Speed (mm/min) 2.5-18
Duty Cycle (%)
60
Type Of wire Feeder in built / Split
Efficiency (%)
80
Power Factor
0.73
Insulation Grade
F
Net Weight (Kg)
24

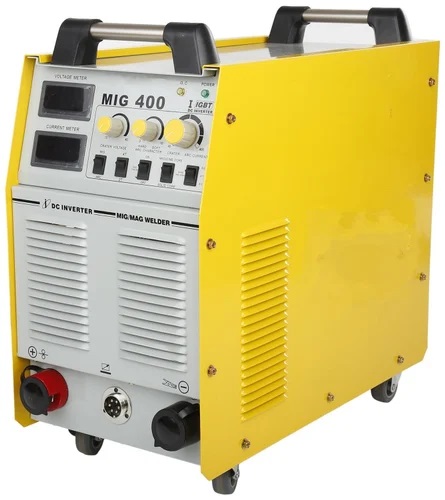

MIG-400 3P




MIG-400 3P
Input Voltage (V)
AC415V±15%
Frequency (HZ)
50/60
Rated Input Capacity
14
Output Current Range(A)
50-400
Output Voltage Adjusment (V) 31.5
Wire Feeding Speed (mm/min) 3.0-24
Duty Cycle (%)
60
Type Of wire Feeder Split
Efficiency (%)
85
Power Factor
0.93
Insulation Grade
F
Net Weight (Kg)
34

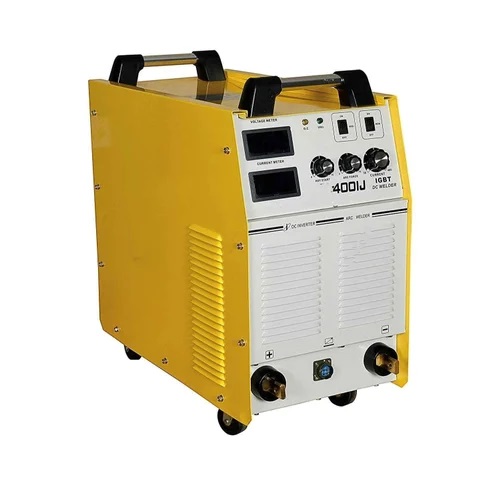

MIG-400IJ 3P




MIG-400IJ 3P
Input Voltage (V)
AC415V±15%
Frequency (HZ)
50/60
Rated Input Capacity
14
Output Current Range(A)
50-400
Output Voltage Adjusment (V) 31.5
Wire Feeding Speed (mm/min) 3.0-24
Duty Cycle (%)
60
Type Of wire Feeder Split
Efficiency (%)
85
Power Factor
0.93
Insulation Grade
F
Net Weight (Kg)
36

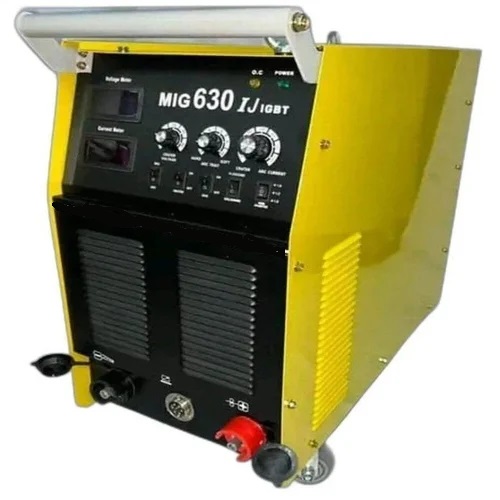

MIG-630IJ 3P




MIG-630IJ 3P
Input Voltage (V)
AC415V±15%
Frequency (HZ)
50/60
Rated Input Capacity
35
Output Current Range(A)
80-630
Output Voltage Adjusment (V) 44
Wire Feeding Speed (mm/min) 3.0-24
Duty Cycle (%)
60
Type Of wire Feeder Split
Efficiency (%)
85
Power Factor
0.93
Insulation Grade
F
Net Weight (Kg)
50
